Notes:

• Engineer:

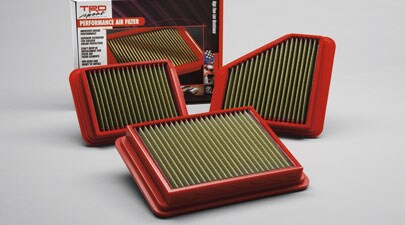

  Recommend use of TRD Air Filter Cleaning Kit - part number PTR43-00088. Replaces Toyota Part Numbers: 17801-38030, 17801-0S010

Unique design fully integrated into the engine with the latest generation Eaton® Twin Vortices System (TVS) roots-type rotor pack. ---The twin four-lobe rotors feature 160-degree twist improves air-handling, noise, and vibration characteristics - Kit includes: -- High flow fuel injectors, single belt drive, and lower heat range iridium-tip spark plugs. -- Water-to-air intercooler system with a custom low temperature radiator (LTR) -- A new performance air Intake system is included in the kit with a TRD re-useable performance filter, Intake Flow Accelerator and a larger upper air box lid with a filter service gauge. -- 50-State emissions legal.

Power: 504hp @5500rpm up from 381hp stock, Torque: 550lb-ft @4000rpm up from 401lb-ft stock.  ALL POWER NUMBERS CERTIFIED TO SAE J1349

Notes:

• Engineer:

  Note: This supercharger is only approved for installation on Gasoline Fueled vehicle applications. No Flex Fuel vehicle applications are approved.

  READ THIS IMPORTANT NOTICE BEFORE INSTALLING THE TRD SUPERCHARGER SYSTEM.

  NOT ALL MODELS ARE ELIGIBLE FOR A SUPERCHARGER SYSTEM!

  Do not install the TRD Supercharger System until the OE vehicle calibration ID can be verified, and a Supercharger Calibration exists for it!  This information can be found on the TIS system.

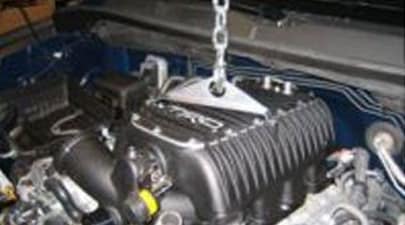

  Vehicle specific fit kits are required : 2007-2011 Tundra = PTR29-34110, 2008-2011 Sequoia = PTR29-0C110 -- Installation time is approximately 7 hours with the first installation likely to take longer. Installation instructions are available on TIS. -- To aid with installation , TRD has developed a hoist mounting bracket that bolts directly onto the supercharger housing lid. The bracket is made from stamped steel and plated to prevent rust (PTR25-34070). -- Engine calibration re-flash is available through TIS using your scan tool or TechStream device. No other special tools or adapters are required. -- Warranty is the same as other TRD powertrain components: 12 months or 12,000 miles or the balance of the 5 year/60,000 mile new car powertrain warranty, whichever is greater, when installed by an authorized Toyota dealer. Superchargers installed by anyone other than an authorized Toyota dealer are warranted for 12 months or 12,000 miles. Specific warranty information is included with the supercharger -- This TRD supercharger is to be sold only as a dealer installed or over-the-counter option after retail sale of the vehicle. This supercharger may not be sold to the customer at the same time as the new vehicle and may not be financed together with the new vehicle.

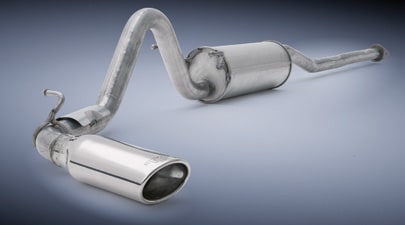

Tacoma TRD Cat-Back Exhaust  - List Price $510
                Sale Price $450
    Part Number PT910-89060 (short base) & PT910-89061 (long base)

Notes:

• Engineer:

  Fits V6 only. There is no 4 cylinder application. There is no application for the X-Runner model.

Scion tC TRD Sport Muffler  -  List Price $649
         Sale Price $575
    Part Number PTR03-21100
The TRD sport muffler provides a deeper and more powerful engine sound that enhances both the presence and appearance of the tC. Constructed entirely of stainless steel, the TRD sport muffler is emissions legal in all 50 states, meets all noise limit requirements and features a satin finished muffler with a double-walled, wide-diameter slant-cut exhaust tip and rolled edge. Plus, the TRD logo is stamped on the top of the satin finished exhaust tip.

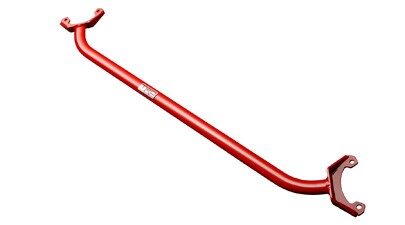

Scion tC TRD Strut Brace  -  List Price $245
         Sale Price $210
    Part Number PTR06-21110
The TRD front strut tie brace mounts inside the engine compartment to help increase chassis rigidity. The result is reduced flex and increased handling precision during aggressive cornering and rough-road driving. Manufactured from lightweight, high-strength TIG-welded extruded aluminum, it's powder-coated in a TRD red for maximum protection and durability, and features a bold TRD logo on a brushed aluminum plate. Plus TRD's design mates with vehicle cowl for increased rigidity.

Notes: Engineer:

Alows front suspension to be more effective through reduced chassis flex.

Replaces OE apron reinforcement. TRD's design mates with vehicle cowl for increased rigidity.

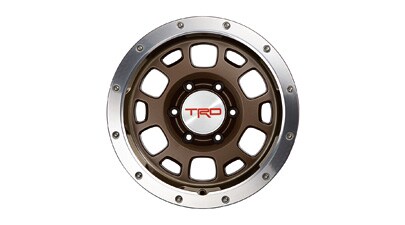

FJ Cruiser/Tacoma TRD 16" Off-Road Wheel  -  $259

            Sale Price $220

    Part Number PTR18-35090-BR

Constructed of low-pressure cast alloy, these TRD-branded 16-inch off-road beadlock style wheels offer owners a distinctive and rugged upgrade to their stock wheels. They provide a higher strength-to-weight ratio for optimal performance and feature a bronze painted finish and machined outer lip with beadlock styling. TRD-embossed snap-in center cap included.

Notes:

• Engineer:

  Fits all 6 on 5.5 inch bolt circle axles, i.e. all 4x4 and prerunner Tacomas and FJ's.

  Off-Road -Beadlock- Style Wheel, BRONZE Finish, with polished aluminum beadlock ring.

  16 in x 7.5 in x 10mm offset
  6 on 5.5 in (139.7mm) Bolt Circle.
  106 mm Center Bore (C.B.).

  Designed for use with 12mm conical-seat spline-drive lugnuts
  (FJ CRUISER vehicle lugnut kit p/n is PTR27-35090).
  (TACOMA vehicle lugnut kit p/n is PTR27-35100).

  Wheel is designed for use with 20 degree TPMS. Wheel comes with TRD-embossed snap-in center cap.

  For FJ Cruiser recommended tire is BFG All-Terrain T/A tire LT265/75R16 M+S (DT001-35070-BF).

  For TACOMA recommended tire is BFG All-Terrain T/A tire LT265/70R16 M+S (DT001-35060-BG).

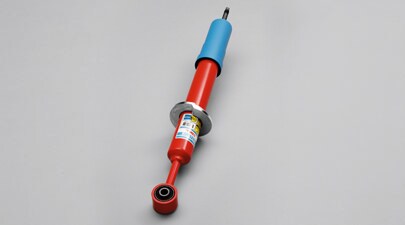

FJ Cruiser TRD Performance Shocks - List Price $149
                  Sale Price $125
    Part Number PTR13-35100 and PTR13-35101
TRD off-road shocks, provided separately for the front and rear, are designed to enhance the FJ Cruiser's on- and off-road performance. Aggressive TRD-developed valving helps reduce body lean when cornering and during vehicle maneuvers, while mono-tube gas charged shocks ensure efficient heat dissipation?enhancing straight-line control, as well as helping to decrease brake "dive" and acceleration "squat." Designed to work with stock springs for enhanced handling, the TRD off-road shocks feature a bold TRD red tube and a blue shaft boot?providing a striking visual enhancement to the vehicle.

• Off-road shocks feature aggressive TRD-developed valving to help reduce body lean when cornering, as well as to maintain control during vehicle maneuvers?enhancing on- and off-road vehicle performance
• 50mm shock tube diameter vs. 30mm OE shock tube
• Mono-tube gas charged design dissipates heat more efficiently
• Enhances straight-line control
• Decreases brake "dive" and acceleration "squat"
• Bold TRD red color tube with blue shaft boot
• Designed to integrate with stock springs for enhanced handling
• Front and rear shocks sold separately

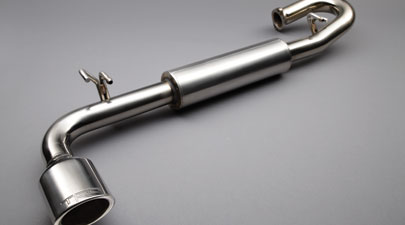

Yaris TRD Sport Muffler - List Price $399

                Sale Price $299

Part Numbers PTR03-52081 and PTR03-52080

Delivering a measurable increase in performance to the Yaris, the TRD sport muffler boosts horsepower?and creates a more aggressive sound to match?while providing a deeper and more resonant engine sound that enhances both the presence and appearance of the vehicle. Constructed entirely of stainless steel, the TRD sport muffler is emissions legal in all 50 states, meets all aftermarket noise limit requirements and features a polished muffler and exhaust tip. Plus the TRD logo is etched on both sides of the high-polished oval exhaust tip.

• Polished muffler body that's exclusively built from 304 stainless steel, specifically for the Yaris and delivering a measurable boost in vehicle horsepower as well as a more resonant engine sound.
• TRD logo etched on both sides of the high-polished oval exhaust tip.
• Uses OEM connectors and existing flanges/gaskets.
• Crafted with precision-welds for a jewel-like appearance.
• High-quality TRD accessory that's race-tested with proven quality.
• Uses factory connector flanges and gaskets (in most applications), and reuses factory hardware and hangers for easy, professional no-drill, no-cut installation.
• Maintains Toyota's high quality standards for performance and strength.
